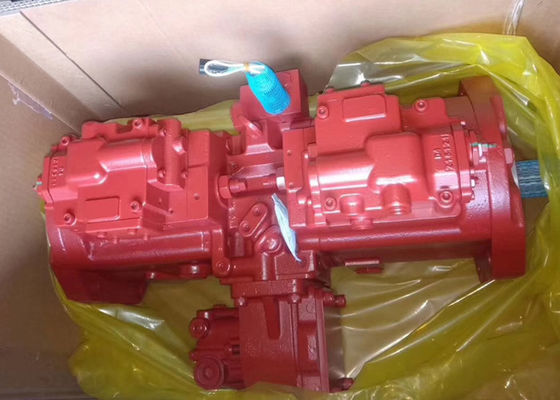

pompa hydráulica hydráulica de la pompa k3v180dt K3V180 31N9-10010-11 31NA-10020 R375-7 K3V180 31N9-10010-11 31NA-10020
Descripción de producto
| Nombre de parte | Excavador Parts de la correa eslabonada |
| Marca | Belparts |
| Condición | New/RENEW/OEM |
| Empaquetado | Caja de madera/cartón exportadores estándar |
| Envío | Por el mar, aire, expreso (DHL, Fedex, TNT, UPS, el ccsme) |
| Pago | T/T, Western Union |
| MOQ | 1 pedazo |
BOMBA PRINCIPAL 31NA-10020 auténtica, nuevas piezas de Hyundai HCE de la compra del tractor del mercado de accesorios con entrega
EXCAVADOR R370LC7 Hyundai de la CORREA ESLABONADA 7-SERIES
álogo de piezas de Hyundai HCE
R370LC-7
| Posición. | Número de parte | Qty | Nombre de piezas | Comentarios |
|---|---|---|---|---|
| *. |
31NA-10020 |
[1] |
BOMBA PRINCIPAL |
TIPO 1 |
|
*. |
31NA-10021 |
[1] |
BOMBA PRINCIPAL |
TIPO - 2 |
|
*-1. |
@ |
[1] |
UNIDAD PRINCIPAL DE LA BOMBA |
|
|
111. |
XJBN-00998 |
[1] |
EJE (F) - IMPULSIÓN |
|
|
113. |
XJBN-00999 |
[1] |
EJE (R) - IMPULSIÓN |
|
|
114. |
XJBN-01000 |
[1] |
ENGRANAJE (1) |
|
|
123. |
XJBN-00571 |
[2] |
BEARING-ROLLER |
|
|
124. |
XJBN-00978 |
[2] |
BEARING-NEEDLE |
|
|
127. |
XJBN-00019 |
[3] |
SPACER-BEARING |
|
|
NS141. |
XJBN-00567 |
[2] |
BLOCK-CYLINDER |
|
|
NS151. |
XJBN-00566 |
[18] |
PISTÓN |
|
|
NS151. |
XJBN-00681 |
[18] |
PISTÓN |
TIPO - 2 |
|
NS152. |
XJBN-00005 |
[18] |
ZAPATO |
|
|
NS152. |
XJBN-01385 |
[18] |
ZAPATO |
TIPO - 2 |
|
153. |
XJBN-00020 |
[2] |
PLATE-SET |
|
|
156. |
XJBN-00564 |
[2] |
BUSHING-SPHERICAL |
|
|
157. |
XJBN-00541 |
[18] |
SPRING-CYLINDER |
|
|
211. |
XJBN-00023 |
[2] |
PLATE-SHOE |
|
|
S212. |
XJBN-00012 |
[2] |
PLATE-SWASH |
|
|
S214. |
XJBN-00013 |
[2] |
BUSHING-TILTING |
|
|
251. |
XJBN-00560 |
[2] |
SUPPORT-S.P. |
|
|
261. |
XJBN-00025 |
[1] |
CUBIERTA (FRANCO) - SELLO |
|
|
263. |
XJBN-00979 |
[1] |
CUBIERTA (RR) - SELLO |
|
|
271. |
XJBN-00026 |
[2] |
CASING-PUMP |
|
|
271. |
XJBN-01386 |
[2] |
CASING-PUMP |
TIPO - 2 |
|
312. |
XJBN-01001 |
[1] |
BLOCK-VALVE |
|
|
S313. |
XJBN-00557 |
[1] |
PLATE-VALVE (R) |
|
|
S314. |
XJBN-00556 |
[1] |
PLATE-VALVE (L) |
|
|
401. |
XJBN-00028 |
[8] |
TORNILLO |
|
|
406. |
XJBN-00355 |
[8] |
TORNILLO |
|
|
466. |
XJBN-00356 |
[2] |
ENCHUFE |
|
|
468. |
XJBN-00357 |
[4] |
ENCHUFE |
|
|
490. |
XJBN-00032 |
[27] |
ENCHUFE |
|
|
492. |
XJBN-00234 |
[12] |
ENCHUFE |
|
|
NS531. |
XJBN-00369 |
[2] |
PIN-TILTING |
|
|
532. |
XJBN-00033 |
[2] |
PISTON-SERVO |
|
|
534. |
XJBN-00034 |
[2] |
TAPÓN (L) |
|
|
535. |
XJBN-00035 |
[2] |
TAPÓNES |
|
|
NS541. |
XJBN-00859 |
[4] |
SEAT |
|
|
NS543. |
XJBN-00860 |
[2] |
TAPÓN |
|
|
NS544. |
XJBN-01002 |
[2] |
TAPÓN (2) |
|
|
S545. |
XJBN-00359 |
[4] |
BALL-STEEL |
|
|
NS548. |
XJBN-00360 |
[2] |
PARTE POSTERIOR DE ALIMENTACIÓN A PERNOS |
|
|
702. |
XJBN-00040 |
[2] |
ANILLO O |
|
|
710. |
XJBN-00041 |
[2] |
ANILLO O |
|
|
714. |
XJBN-01003 |
[1] |
ANILLO O |
|
|
717. |
XJBN-00042 |
[2] |
ANILLO O |
|
|
719. |
XJBN-00043 |
[2] |
ANILLO O |
|
|
724. |
XJBN-00361 |
[16] |
ANILLO O |
|
|
725. |
XJBN-00362 |
[6] |
ANILLO O |
|
|
728. |
XJBN-00363 |
[4] |
ANILLO O |
|
|
732. |
XJBN-00047 |
[2] |
ANILLO O |
|
|
774. |
XJBN-00906 |
[1] |
SEAL-OIL |
|
|
774. |
XJBN-01595 |
[1] |
SEAL-OIL |
TIPO - 2 |
|
789. |
XJBN-00049 |
[2] |
SEÑAL DE LLAMADA PARA ARRIBA |
|
|
792. |
XJBN-00050 |
[2] |
SEÑAL DE LLAMADA PARA ARRIBA |
|
|
808. |
XJBN-00364 |
[4] |
NUEZ |
|
|
824. |
XJBN-00052 |
[2] |
RING-SNAP |
|
|
885. |
XJBN-00053 |
[2] |
PIN-2 |
|
|
886. |
XJBN-00365 |
[4] |
PIN-SPRING |
|
|
901. |
XJBN-00055 |
[2] |
BOLT-EYE |
|
|
953. |
XJBN-00056 |
[2] |
SCREW-SET |
|
|
954. |
XJBN-00057 |
[2] |
SCREW-SET |
|
|
981. |
XJBN-00156 |
[1] |
PLACA DE IDENTIFICACIÓN |
|
|
983. |
XJBN-00341 |
[2] |
PIN |
|
|
*-2. |
XJBN-01004 |
[2] |
REGULADOR |
VEA 4020 |
|
*-3. |
XJBN-01005 |
[1] |
BOMBA DE ENGRANAJE |
VEA 4030 |
|
*-4. |
XJBN-00014 |
[1] |
MONTAJE DE LA VÁLVULA DE EPPR |
VEA 4040 |
|
*-5. |
XJBN-01006 |
[1] |
UNIDAD DEL PTO |
|
|
5-1. |
XJBN-01007 |
[8] |
SCREW-HEX |
|
|
5-2. |
XJBN-00031 |
[1] |
ENCHUFE |
|
|
5-3. |
XJBN-01008 |
[1] |
ANILLO O |
|
|
5-4. |
XJBN-00046 |
[1] |
ANILLO O |
|
|
S011. |
XJBN-00563 |
[2] |
MONTAJE DEL PISTÓN |
VEA ILLUST |
|
S011. |
XJBN-01382 |
[2] |
MONTAJE DEL PISTÓN |
TIPO - 2 |
|
S013. |
XJBN-00562 |
[1] |
CILINDRO ASSY-RH |
VEA ILLUST |
|
S014. |
XJBN-00561 |
[1] |
CILINDRO ASSY-LH |
VEA ILLUST |
|
S030. |
XJBN-00011 |
[2] |
MONTAJE DE LA PLACA CHAPOTEANTE |
VEA ILLUST |
|
S041. |
XJBN-00072 |
[2] |
MONTAJE 1 DE LA VÁLVULA DE CONTROL |
VEA ILLUST |
|
S042. |
XJBN-01009 |
[2] |
MONTAJE 3 DE LA VÁLVULA DE CONTROL |
VEA ILLUST |
|
S530. |
XJBN-00371 |
[2] |
INCLINACIÓN DE LA ASAMBLEA SUB DEL PIN |
VEA ILLUST |
